Essential Tools for Working with Pneumatic Fittings

Working with pneumatic fittings requires the right tools to ensure proper installation, leak-free connections, and safe system performance. Using the correct tools also reduces damage to fittings and tubing during assembly and maintenance.

This guide covers the essential tools needed for working with pneumatic systems.

Tubing Cutter

A tubing cutter is used to make clean, straight cuts on pneumatic tubing.

Why it matters:

• Prevents crushed or uneven tube ends
• Ensures proper sealing in push-to-connect fittings
• Reduces risk of air leaks

Clean cuts are critical for reliable connections.

Adjustable Wrench and Spanners

Wrenches are used for tightening threaded fittings such as NPT, BSPT, or BSPP connections.

Why they matter:

• Provide proper torque during installation
• Prevent over-tightening or damage
• Help ensure leak-free threaded joints

It is important to use the correct size to avoid rounding fittings.

Thread Sealant (PTFE Tape or Paste)

Thread sealant is used on threaded fittings to prevent air leaks.

Why it matters:

• Fills small gaps between threads
• Improves sealing performance
• Reduces risk of leaks under pressure

Note: Push-to-connect fittings do not require thread sealant.

Thread Pitch Gauge

A thread pitch gauge is used to identify thread type and pitch.

Why it matters:

• Helps identify NPT, BSPT, BSPP, and metric threads
• Prevents mismatched fittings
• Improves accuracy during repairs or replacements

This is especially useful when replacing unknown fittings.

Calipers

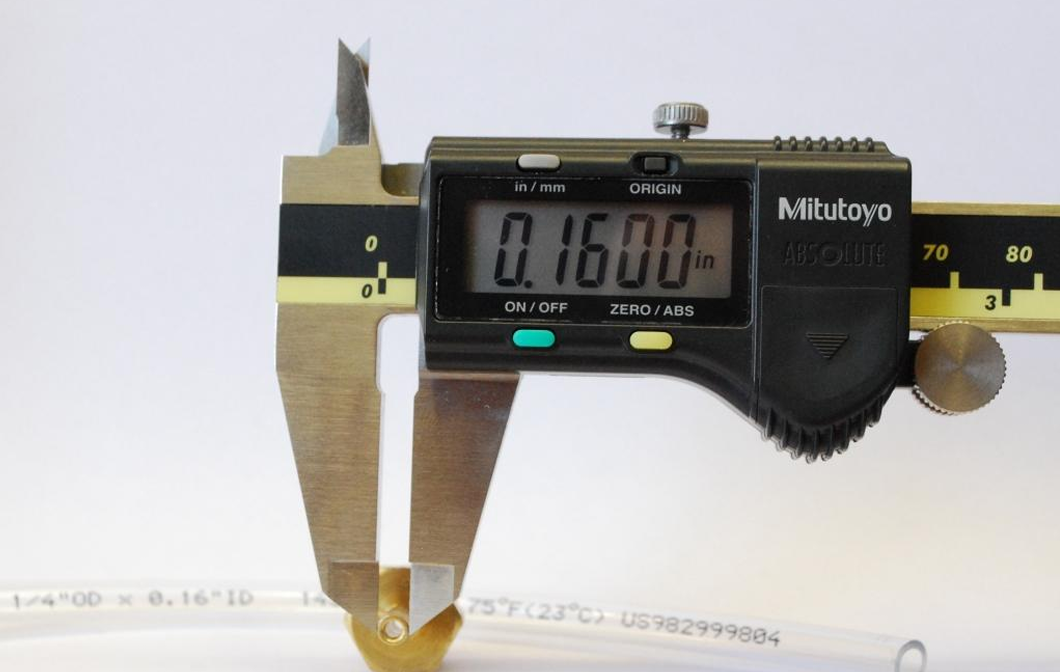

Calipers are used to measure tubing and fitting dimensions.

Why they matter:

• Measure outer diameter (OD) of tubing
• Help confirm fitting size
• Assist in identifying unknown components

Most pneumatic systems are sized based on OD.

Deburring Tool

A deburring tool removes sharp edges after cutting tubing.

Why it matters:

• Prevents damage to seals inside fittings
• Improves insertion into push-to-connect fittings
• Reduces risk of leaks

Even small burrs can affect performance.

Pressure Gauge (System Monitoring)

A pressure gauge is used to monitor system pressure in real time.

Why it matters:

• Helps ensure safe operating pressure
• Detects overpressurization issues
• Supports system diagnostics and maintenance

Final Thoughts

Using the right tools has a direct impact on sealing quality, installation time, and system reliability. Small mistakes like poor cuts or incorrect tightening often lead to leaks and premature failures. Proper tools remove most of the guesswork from installation and maintenance.
