When to Use Straight vs Elbow vs Tee Fittings in Pneumatic Systems

Choosing the right pneumatic fitting shape is important for system layout, airflow efficiency, and installation ease. The three most common types are straight, elbow, and tee fittings, and each serves a specific purpose.

This guide explains when to use each type in real applications.

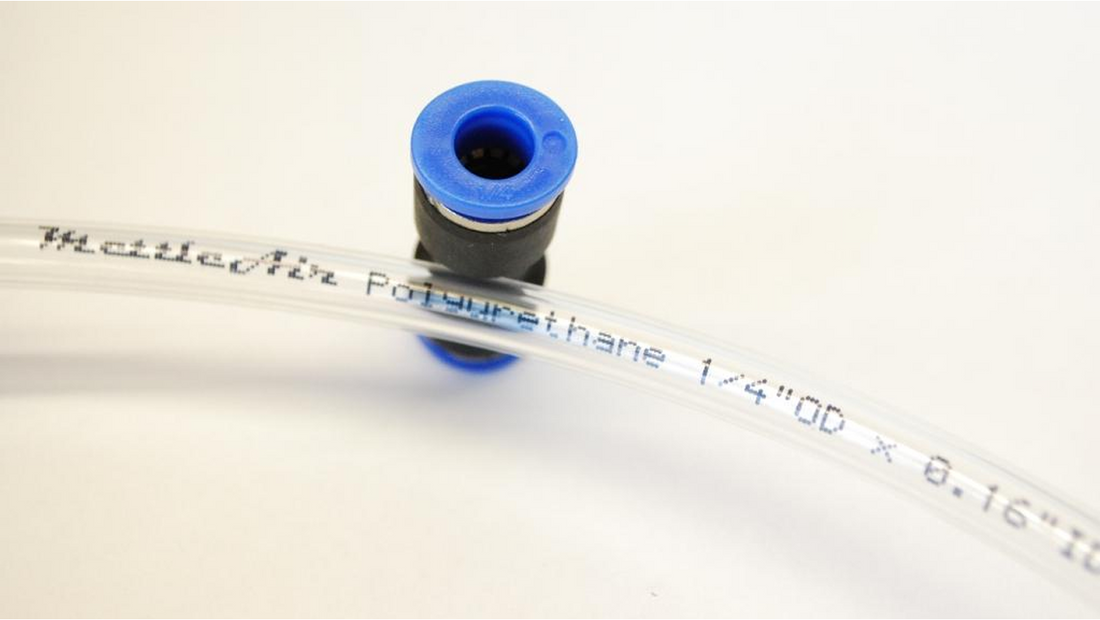

Straight Fittings

Straight fittings connect tubing in a direct line with no change in direction.

Best used for:

• Long, straight air lines
• Connecting tubing between two inline components
• Simple system layouts
• Areas with enough space for direct routing

Advantages:

• Minimal airflow restriction
• Simple installation
• Clean and direct routing

Limitations:

• Requires space for straight alignment
• Not suitable for tight or compact areas

Elbow Fittings

Elbow fittings change the direction of airflow, usually at 90 degrees.

Best used for:

• Tight spaces or corners
• Panel-mounted components
• Routing tubing along machine frames
• Preventing sharp bends in tubing

Advantages:

• Saves space
• Reduces tubing stress from sharp bends
• Improves routing flexibility

Limitations:

• Slightly more airflow restriction than straight fittings
• More components in complex systems

Tee Fittings

Tee fittings split or combine airflow in three directions.

Best used for:

• Branching a single air line into two outputs
• Feeding multiple components from one source
• Adding sensors or gauges into a line
• Distributing air in parallel circuits

Advantages:

• Allows system expansion
• Efficient air distribution
• Reduces need for multiple supply lines

Limitations:

• Can create pressure drop in poorly designed systems
• Requires balanced flow planning

How to Choose the Right Fitting

The simplest way to decide:

• Use straight fittings for direct connections
• Use elbow fittings for direction changes or tight spaces
• Use tee fittings for splitting or combining airflow

Common Mistakes

1. Using straight fittings where space is limited

This can lead to sharp tubing bends and stress on connections.

2. Overusing tee fittings

Too many branches can reduce system pressure and performance.

3. Ignoring airflow direction

Incorrect layout can cause inefficiency or uneven pressure distribution.

Final Thoughts

Fitting choice mainly comes down to system layout and space constraints. Straight fittings are best for direct runs, elbows for direction changes, and tees for branching lines. Most issues come from forcing tubing into poor routing instead of using the correct fitting type.
