OD vs ID in Pneumatics: What They Mean and Why It Matters

When working with pneumatic tubing and fittings, two key measurements matter: outer diameter (OD) and inner diameter (ID). They are often confused, but they serve very different purposes.

Understanding the difference helps you choose the correct tubing, avoid leaks, and ensure proper airflow.

What Is Outer Diameter (OD)?

The outer diameter (OD) is the total width of the tube measured from outside edge to outside edge.

In pneumatics:

• OD determines fitting compatibility
• Push-to-connect fittings are always sized by OD
• Example: 8mm tube fits an 8mm fitting

If the OD is wrong, the tube will not seal properly in the fitting.

What Is Inner Diameter (ID)?

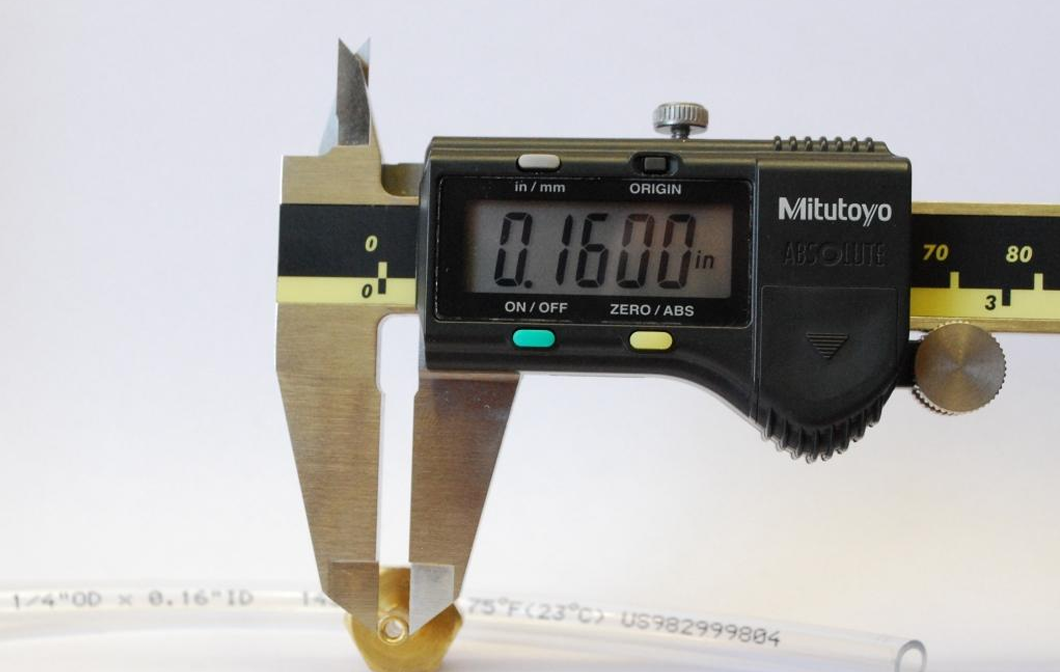

The inner diameter (ID) is the hollow space inside the tube where air flows.

In pneumatics:

• ID affects airflow volume
• Larger ID = higher airflow capacity
• Smaller ID = more restriction but finer control

ID does not affect fitting size—only performance.

OD vs ID: Key Difference

Simple breakdown:

• OD = connection size (what fits the fitting)
• ID = airflow size (how much air passes through)

Tube wall thickness determines how OD and ID relate.

Why This Confuses People

A common mistake is assuming tube size refers to the inner diameter.

For example:

• A “6mm tube” refers to OD, not ID
• Different wall thicknesses can change ID while OD stays the same

So two tubes with the same OD may still perform differently.

How OD Affects Fittings

Most pneumatic fittings are sized strictly by OD:

• 4mm tube → 4mm fitting
• 6mm tube → 6mm fitting
• 8mm tube → 8mm fitting

If OD does not match:

• The tube may not insert properly
• Or it may leak under pressure

How ID Affects Performance

ID controls airflow:

• Larger ID → better flow and less pressure drop
• Smaller ID → more restriction and control

This matters most in long runs or high-flow systems.

Quick Summary

• OD (Outer Diameter) = fitting size
• ID (Inner Diameter) = airflow capacity
• Pneumatic fittings always use OD sizing

Final Thoughts

Once you understand OD vs ID, selecting pneumatic tubing becomes much easier. It removes guesswork and helps prevent leaks and performance issues.
