Tube Sizes Explained: Metric to Imperial Conversions for Pneumatics
Share
Pneumatic tubing is available in both metric and imperial sizes, which often creates confusion when replacing parts or matching systems.
This guide covers the most common size conversions and how to correctly interpret tubing labels in real-world applications.
Pneumatic Tube Sizing Basics
All pneumatic tubing is defined by its outer diameter (OD).
This is important because:
- Push-to-connect fittings are sized by OD
- Tube size labels refer to OD, not inner diameter
- Matching OD ensures a proper seal and fit
How Tubing Is Labelled (OD × ID Format)
Most tubing is marked using this format:
OD × ID
Example:

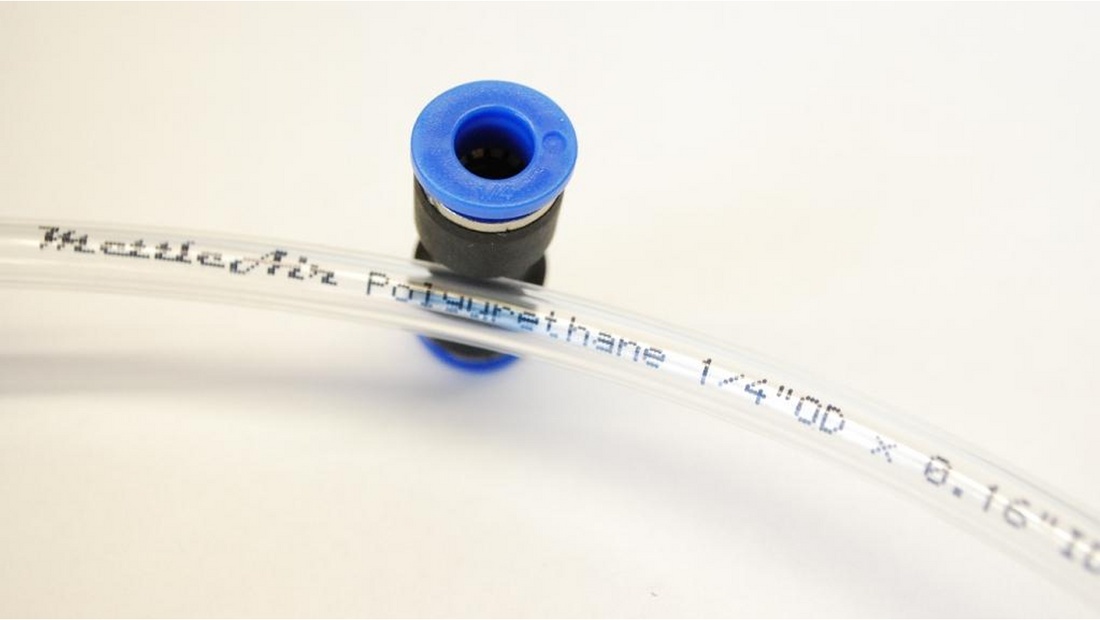

- 1/4" OD × 0.16" ID
This means:
- 1/4" = outer diameter (fitting size)
- 0.16" = inner diameter (airflow path)
If the marking is unclear:
- The larger number is usually the OD
- The smaller number is the ID
This rule helps when tubing is partially worn or inconsistently labeled.
Metric to Imperial Tube Size Conversion Chart
| Metric (mm) | Imperial (inch) |
|---|---|
| 3 mm | 1/8" (approx.) |
| 4 mm | 5/32" |
| 6 mm | 1/4" |
| 8 mm | 5/16" |
| 10 mm | 3/8" |
| 12 mm | 1/2" |
Common Equivalent Sizes
Most pneumatic systems use these standard conversions:
- 3mm ≈ 1/8"
- 4mm ≈ 5/32"
- 6mm ≈ 1/4"
- 8mm ≈ 5/16"
- 10mm ≈ 3/8"
- 12mm ≈ 1/2"
These sizes are close equivalents, even though they are not mathematically exact.
Metric vs Imperial Compatibility
Metric and imperial tubing systems are not perfectly matched, but they are often used interchangeably in pneumatic applications.
However:
- Small differences in OD can affect fit
- Compatibility depends on fitting tolerance
- Consistency within one system is preferred
Push-to-Connect vs Barbed Fittings (Important Difference)
Different fittings use different sizing rules:
Push-to-connect fittings:
- Sized by outer diameter (OD)
- Tube simply pushes into fitting
- Example: 6mm tube → 6mm fitting
Barbed fittings:
- Sized by inner diameter (ID)
- Tube stretches over barb
- Example: 1/8" ID tube → 1/8" barb fitting
Why Size Confusion Happens
Most mistakes come from:
- Assuming tubing size refers to ID
- Mixing metric and imperial systems
- Not recognizing OD × ID labeling format
A small mismatch can result in:
- Loose fittings
- Air leaks
- Reduced system performance
Final Thoughts
Understanding tubing sizes is mainly about one rule:
Push-to-connect systems use OD. Barbed systems use ID.
Once this is clear, selecting tubing becomes straightforward, even when switching between metric and imperial systems.
