METTLEAIR

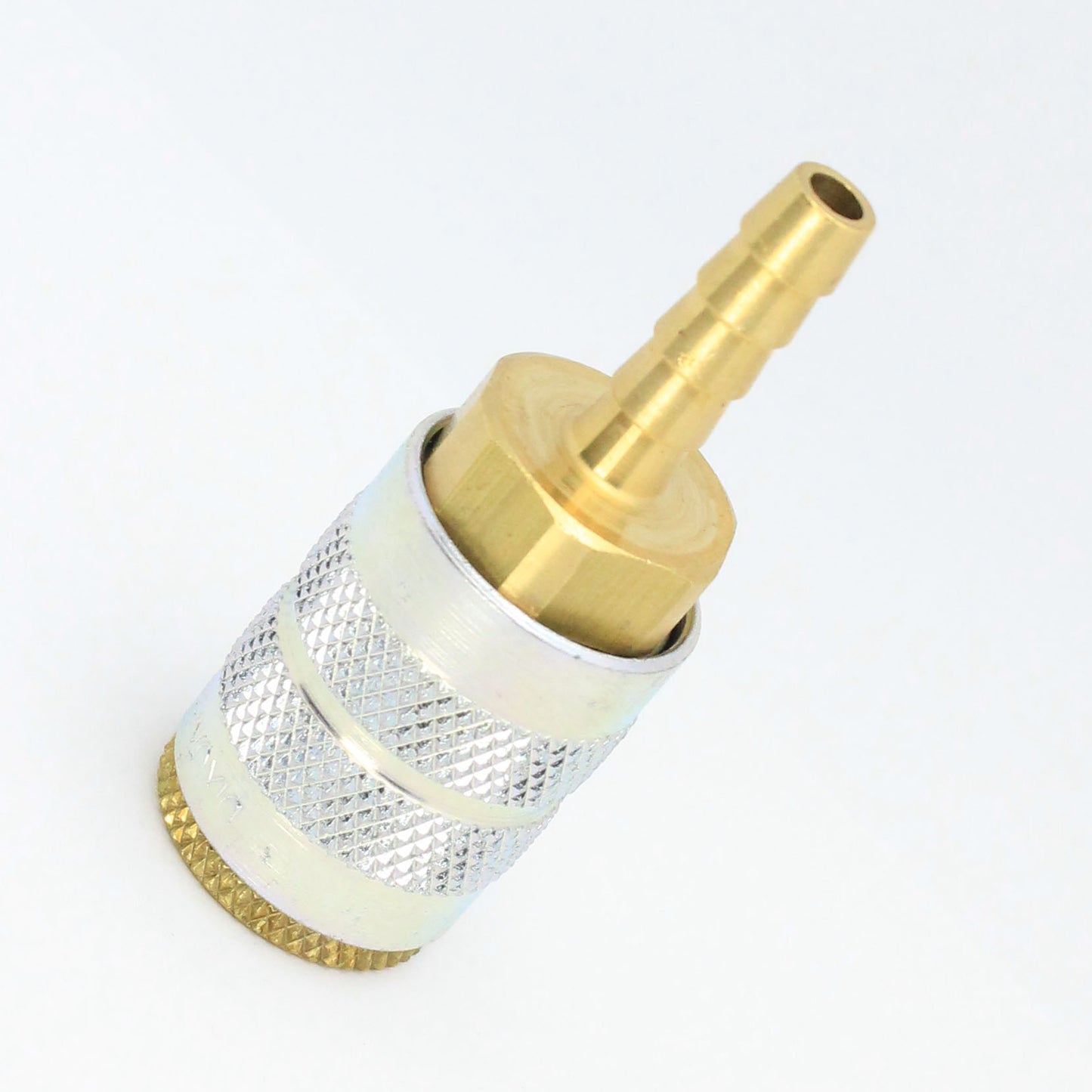

1/4" Body x 3/8" Hose ID Barb Manual Industrial Interchange Coupler Brass

1/4" Body x 3/8" Hose ID Barb Manual Industrial Interchange Coupler Brass

SKU: 2FS3-B

$13.79 CAD
$13.79 CAD
Sale Sold out
Shipping calculated at checkout.

Product Features

  • Model: 2FS3-B
  • Body Size: 1/4"
  • Hose ID: 3/8"
Material: Brass

Product Description



IMPORTANT NOTE: "Pipe Thread Size" DOES NOT directly correspond to Actual Dimensions of the thread.
Remember to double check Parker, Foster, Dixon series compatibility prior to purchase

Quantity: 1 (One) piece

Overview: Industrial interchange couplings are widely used in pneumatic applications. A unique six ball locking mechanism provides quick and reliable connections. Dixon's couplers are well known and respected for their "longevity" and reliability. F-Series Couplers provide convenient manual connections. They have been performing reliably and safely for over 50 years. This amazing coupler is a perfect solution for connecting pressurized air lines.

Features:

Quality machined components
Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life
Nitrile (Buna-N) seals provide wide operating temperature range

Interchange Data:

Parker 20-Series Manual Interchange
Foster 3, 4, 5 and 6 Series
Temperature range: -40F to 250F (-40C to +121C)

Functional Parameters:

Locking Ball Quantity: 6
Air Inclusion: N/A
Fluid Loss: N/A
Vacuum Rating: N/R
Flow ΔP=15 PSI: 27 CFM

Connected Pressure Rating for 1/4" Body Size

Brass Coupler/Steel Plug: 500 PSI/35 BAR (Max. Working), 9000 PSI/620 BAR (Burst)
Brass Coupler/Plug: 300 PSI/20 BAR (Max. Working), 8000 PSI/586 BAR (Burst)

Interchange Standards:

US Military: MIL-C-4109F
US Government: A-A-59439
International Standards: ISO6150B
ANSI/NFPA Standards T3.20.14-1990
