METTLEAIR

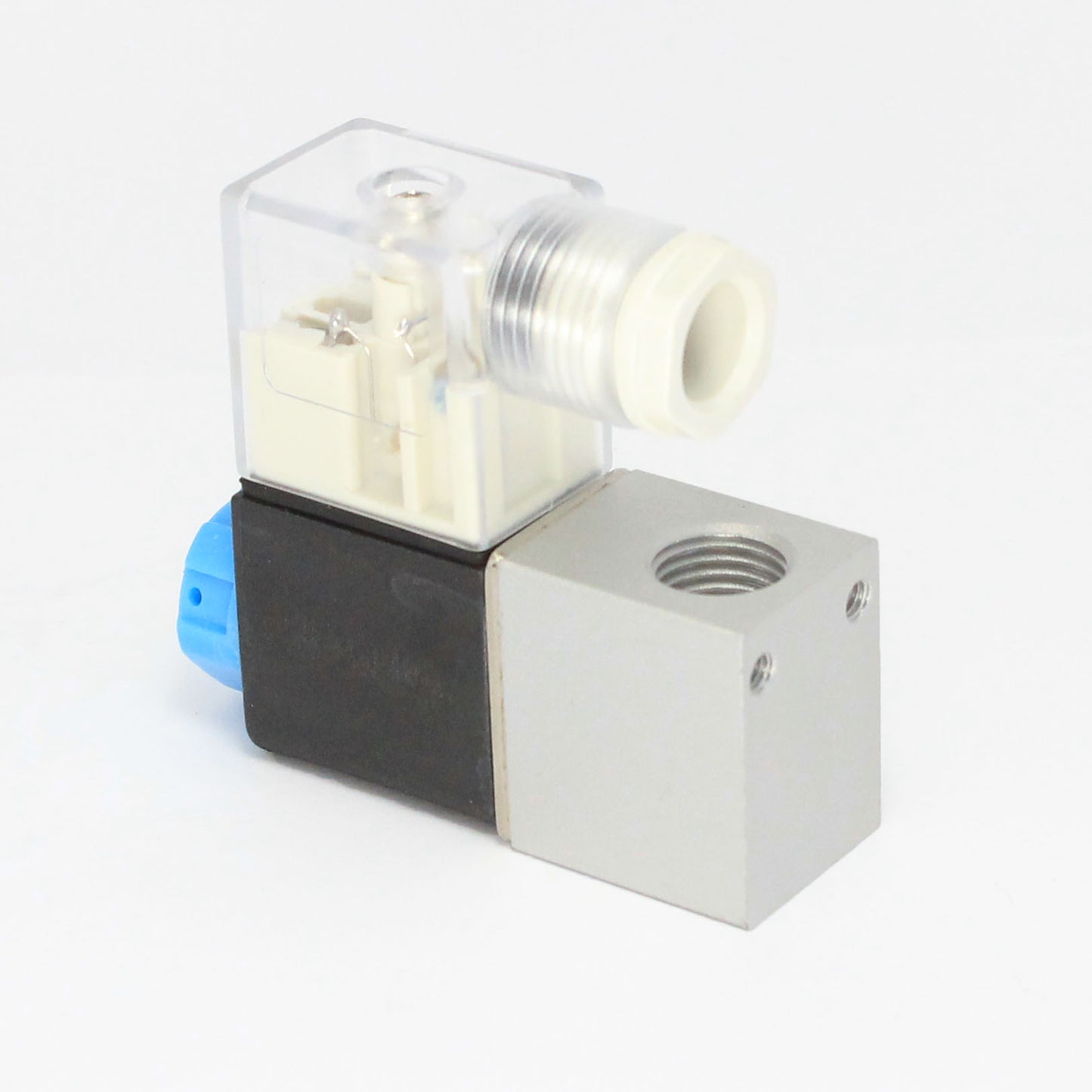

2 Way Valve 1/8" NPT DIN Connector AC 110V

2 Way Valve 1/8" NPT DIN Connector AC 110V

SKU: 2V025-06-AC110

$22.27 CAD
$22.27 CAD
Sale Sold out
Shipping calculated at checkout.

Product Features

  • Type: 2 Way 2 Position Single Solenoid Valve with Manual Override NORMALLY CLOSED/Spring Return
  • Model: 2V025-06-AC110
  • Coil: 110V AC, LED Light
Ports: 1/8" NPT

Product Description



Flow Rate (Cv): 0.23

Body Material: Aluminum

Quantity: 1 (One) piece

Positions: Two way/Two position

Port Size: Air Inlet=Air Outlet=1/8"NPT

Working Media: 40 Micron Filtered Air

Motion Pattern: Inner Guide Type

Operating Pressure: 7-101 PSI

Operating Temperature:5ºC to + 50ºC / 41ºF to 122ºF

Allowable Voltage Fluctuations: ±10% of Rated Voltage

Power Consumption: AC: 6.5 VA/ DC: 6W

Insulation and Protection: Class F Class / IP65

Wiring Form: Lead Wire or Connector Type

Highest Action Frequency: 5 Cycles/Second

Shortest Excitation Time: 0.05 Second

This precision product works great with other quality MettleAir accessories.
