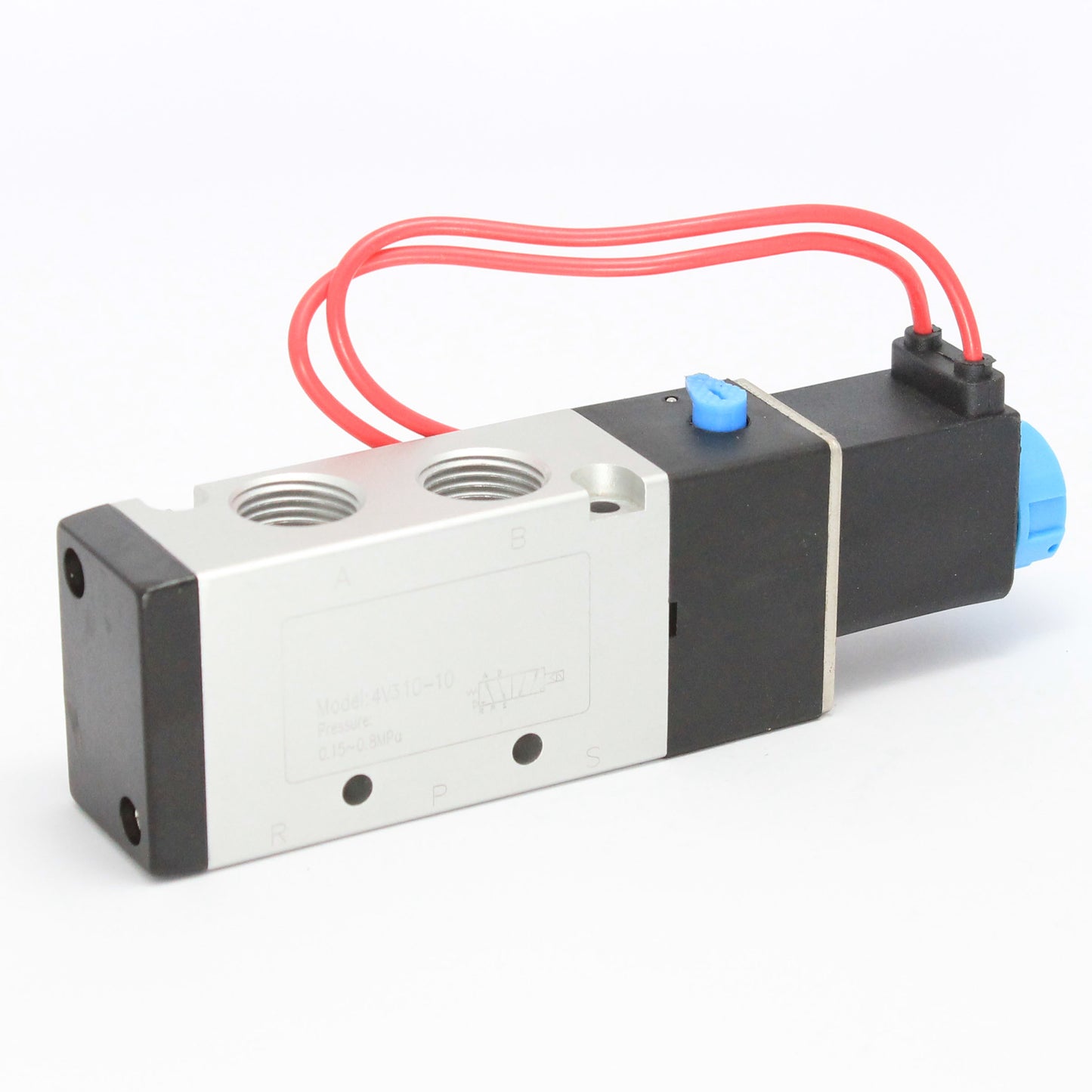

- Type: 5 Ports 4 Way 2 Position Single Solenoid Valve with Manual Override/Spring Return
- Model: 4V310-08-DC24W
- Coil: 24V DC, Wired Coil
- Ports: 1/4" NPT
Product Description
Body Material: Aluminum
Quantity: 1 (One) piece
Positions: Five way/Two position
Effective Section Area: 30mm² (CV=1.68)
Port Size: Air Inlet=Air Outlet=3/8"NPT ; Exhaust=1/4"NPT
Working Media: 40 Micron Filtered Air
Motion Pattern: Inner Guide Type
Operating Pressure: 22-116 PSI
Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF
Allowable Voltage Fluctuations: ±10% of Rated Voltage
Power Consumption: AC: 5.5 VA/ DC: 4.8W
Insulation and Protection: Class F Class / IP65
Wiring Form: Lead Wire or Connector Type
Highest Action Frequency: 5 Cycles/Second
Shortest Excitation Time: 0.05 Second
This precision product works great with other quality MettleAir accessories.
