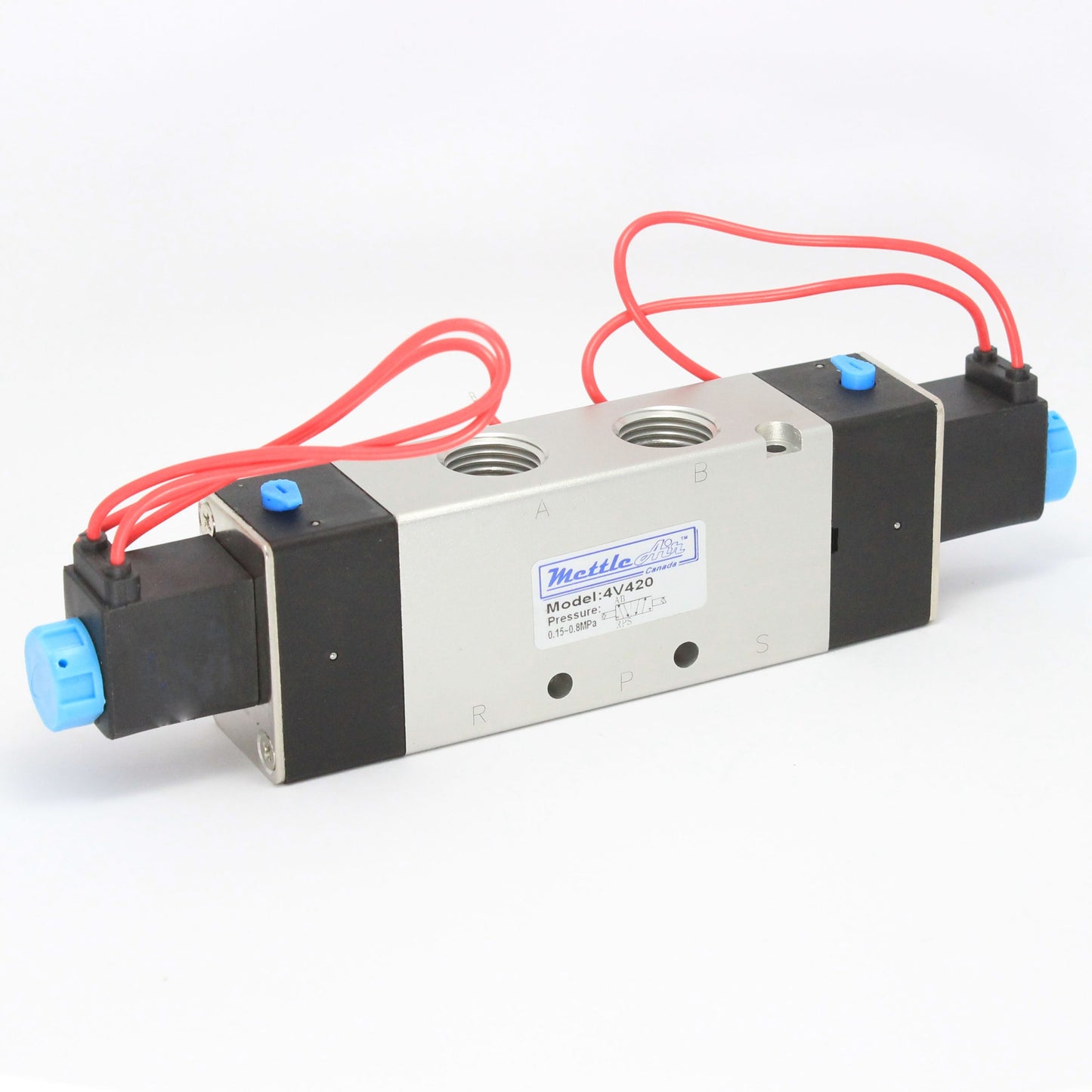

5 Ports 4 Way 2 Position Valve 1/2" NPT Wire Leads Double Solenoid DC 12V

5 Ports 4 Way 2 Position Valve 1/2" NPT Wire Leads Double Solenoid DC 12V

SKU: 4V420-15-DC12W

Regular price $105.05 CAD
Regular price Sale price $105.05 CAD
Sale Sold out
Shipping calculated at checkout.

Product Features

  • Type: 5 Ports 4 Way 2 Position Double Solenoid Valve with Manual Override
  • Model: 4V420-15-DC12W
  • Coil: 12V DC, Wired Coil
  • Ports: 1/2" NPT
Exhaust: 1/2" NPT

Product Description



Flow Rate (Cv): 2.79

Body Material: Aluminum

Quantity: 1 (One) piece

Positions: Five way/Two position

Effective Section Area: 50mm² (CV=2.79)

Port Size: Air Inlet=Air Outlet=1/2"NPT

Working Media: 40 Micron Filtered Air

Motion Pattern: Inner Guide Type

Operating Pressure:22-116 PSI

Operating Temperature:5ºC to 50ºC / 41ºF to 122ºF

Allowable Voltage Fluctuations: ±10% of Rated Voltage

Power Consumption: AC: 5.5 VA/ DC: 4.8W

Insulation and Protection: Class F Class / IP65

Wiring Form: Lead Wire or Connector Type

Highest Action Frequency: 5 Cycles/Second

Shortest Excitation Time: 0.05 Second

This precision product works great with other quality MettleAir accessories.

LIMITATION OF LIABILITY

IN NO EVENT SHALL METTLEAIR BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE DAMAGES OF ANY KIND, OR DAMAGES CAUSED BY DELAY IN PERFORMANCE, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR REVENUE, COST OF SUBSTITUTES, ARISING FROM OR IN ANY WAY CONNECTED TO THIS AGREEMENT OR ORDER, WHETHER FOR BREACH OF WARRANTY OR OTHER BREACH OF CONTRACT, NEGLIGENCE OR OTHER TORT.   METTLEAIR’S MAXIMUM LIABILITY FOR ANY CLAIMS ARISING FROM OR IN ANY WAY CONNECTED TO THIS AGREEMENT OR ORDER, WHETHER IN CONTRACT OR TORT OR OTHERWISE, SHALL NOT EXCEED THE INVOICED PURCHASE PRICE OF THE PRODUCT(S) GIVING RISE TO THE CLAIM.

It is agreed and acknowledged that the provisions of these Terms allocate the risks between  MettleAir and the Buyer in a fair and equitable manner, MettleAir’s pricing reflects this allocation of risk, and but for this allocation and limitation of liability, MettleAir would not have agreed to sell the Products to Buyer.

In jurisdictions that limit the scope of, or preclude limitations or exclusions of, remedies or damages or of liability such as liability for gross negligence or willful misconduct or do not allow implied warranties to be excluded, the limitation or exclusion of warranties, remedies, damages or liability set forth herein are intended to apply to the maximum extent permitted by applicable law.

CALIFORNIA PROPOSITION 65 WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING THIS PRODUCT IS NOT D.O.T. APPROVED

This product is not D.O.T. (Department of Transportation) approved and should not be used for automotive applications.
