METTLEAIR

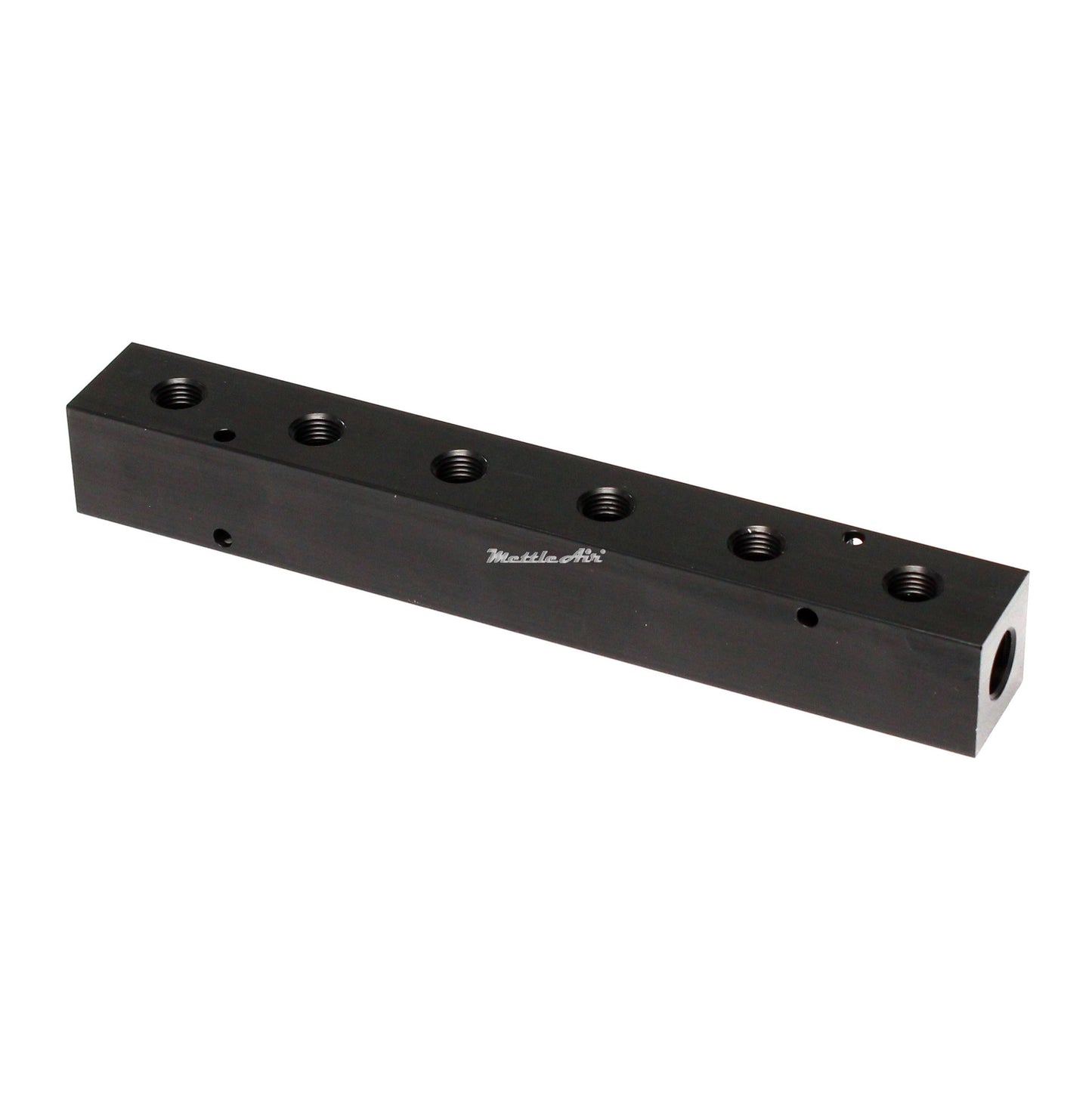

Wide Aluminum Manifold 2 x 3/8" NPT IN - 6 x 1/4" NPT Out 1.5" Center Port Distance

Wide Aluminum Manifold 2 x 3/8" NPT IN - 6 x 1/4" NPT Out 1.5" Center Port Distance

SKU: AM20-250-6W

$61.61 CAD
$61.61 CAD
Sale Sold out
Shipping calculated at checkout.



                                                           SPECIFICATIONS
  Model   AM20-250-6W
  Input Port Size   2 x 3/8" NPT
  Output Port Size   6 x 1/4" NPT
  Pressure   1000 PSI
  Body Material   Black Anodized Aluminum
  Center Port Distance (E)     1.5" (38.1 mm)
  Overall Length (L)   9.25"
  Width (W)   1.25"
  Height (H)   1.25"
  Features   Corrosion Resistance, Mounting Versatility



*Note: Center Port Distance is measured from the center of one outlet port to the center of the next outlet port, please refer to measurement C in the drawing*


This precision product works great with other quality MettleAir accessories.

Description

Category: Inline Manifold
Type: NPT Manifold Wide
Model: AM20-250-6W

Specifications

  • Input Port Size: 2 x 3/8 NPT
  • Output Port Size: 6 x 1/4 NPT
  • Operating Pressure: 1000 PSI
  • Body Material: Black Anodized Aluminum
  • Center Port Distance (C): 1.5" (38.1 mm)
  • Overall Length (L): 9.25"
  • Width (W): 1.25"
  • Height (H): 1.25"

Note:
Center Port Distance is measured from the center of one outlet port to the center of the next outlet port, please refer to measurement C in the drawing
For complete product dimensions, please refer to our catalog – Click Here

--> Center Port Distance is measured from the center of one outlet port to the center of the adjacent outlet port. Please refer to measurement C in the drawing.
--> Center Port Distance refers to the center-to-center spacing between adjacent outlet ports (see measurement C in the drawing).

Features

  • Corrosion-Resistant Construction: Black anodized aluminum body provides long-lasting protection in demanding environments.
  • Versatile Mounting Options: Compact rectangular design allows easy installation in various orientations and equipment layouts.

CALIFORNIA PROPOSITION 65 WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING THIS PRODUCT IS NOT D.O.T. APPROVED

This product is not D.O.T. (Department of Transportation) approved and should not be used for automotive applications.

GENERIC IMAGES ARE USED FOR OUR WEBSITE

The actual product may differ from the image shown in size, shape and appearance.
Fitment is based on the measurements given in the product description.
