METTLEAIR

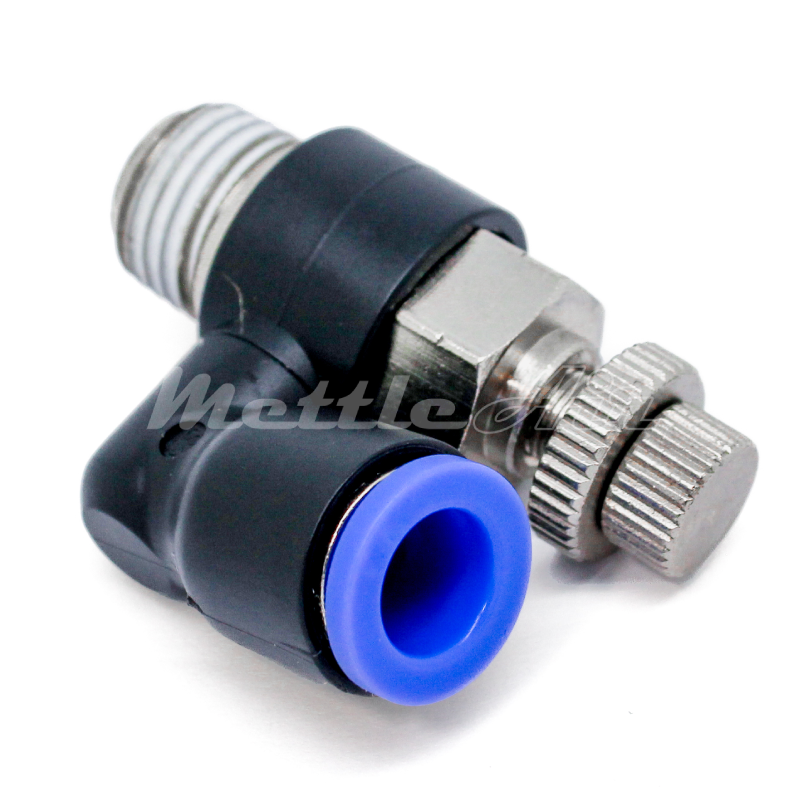

Push to Connect Universal Elbow Speed Control METER OUT 1/4" OD - 1/4" NPT Male

Push to Connect Universal Elbow Speed Control METER OUT 1/4" OD - 1/4" NPT Male

SKU: MSCL1/4-N02

$13.52 CAD
$13.52 CAD
Sale Sold out
Shipping calculated at checkout.

Product Features

  • Type: Universal Elbow Meter Out Speed Control Male Thread
  • Model: MSCL1/4-N02
  • Tubing OD: 1/4" OD
  • Thread: 1/4" NPT Male
  • Body Material: Composite/Nickel Plated Brass
  • Resin body can be rotated horizontally in 360 degrees
  • Additionally the elbow can be rotated vertically in 360 degrees, to allow for easy installation of tubing from any direction
DISCLAIMER:

This valve is NOT intended and cannot be used as a shut off point / shut off valve.

It is designed to control flow rate only.

Please Note: This part is not intended for applications which require continuous rotation after installation

Product Description

IMPORTANT NOTE: This FLOW CONTROL is a DIRECTIONAL Valve (METER OUT). Air flow is controlled only in ONE DIRECTION - from threaded side to push to connect side. In the opposite direction air flow is UNCONTROLLED.

Product Description

  • Designed for Polyurethane or Nylon tubing
  • Quick and Reliable connections
  • Reusable: Multiple connections/disconnections
  • Convenient elliptical sleeve configuration
  • Metallic body made of non-corrosive, non-contaminant Nickel-Plated Brass
  • Pre-coated threads are ready to use without additional sealing
  • Hex/Allen Key tightening

  SPECIFICATIONS
Fluid Type  AIR
Operating Pressure 0-150 PSI
Working Temperature 32-140° F 0-60° C
Metallic Body Nickel-Plated Brass
O-Ring NBR (Acrylonitrile butadiene rubber)
Plastic Body PBT (Polybutylene terephthalate)
Packing NBR (Acrylonitrile butadiene rubber)
Back Ring POM (Polyoxymethylene plastic)
Lock Claws Stainless Steel
Collar Zinc Alloy
Sleeve POM (Polyoxymethylene plastic)



LIMITATION OF LIABILITY

IN NO EVENT SHALL METTLEAIR BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE DAMAGES OF ANY KIND, OR DAMAGES CAUSED BY DELAY IN PERFORMANCE, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR REVENUE, COST OF SUBSTITUTES, ARISING FROM OR IN ANY WAY CONNECTED TO THIS AGREEMENT OR ORDER, WHETHER FOR BREACH OF WARRANTY OR OTHER BREACH OF CONTRACT, NEGLIGENCE OR OTHER TORT.   METTLEAIR’S MAXIMUM LIABILITY FOR ANY CLAIMS ARISING FROM OR IN ANY WAY CONNECTED TO THIS AGREEMENT OR ORDER, WHETHER IN CONTRACT OR TORT OR OTHERWISE, SHALL NOT EXCEED THE INVOICED PURCHASE PRICE OF THE PRODUCT(S) GIVING RISE TO THE CLAIM.

It is agreed and acknowledged that the provisions of these Terms allocate the risks between  MettleAir and the Buyer in a fair and equitable manner, MettleAir’s pricing reflects this allocation of risk, and but for this allocation and limitation of liability, MettleAir would not have agreed to sell the Products to Buyer.

In jurisdictions that limit the scope of, or preclude limitations or exclusions of, remedies or damages or of liability such as liability for gross negligence or willful misconduct or do not allow implied warranties to be excluded, the limitation or exclusion of warranties, remedies, damages or liability set forth herein are intended to apply to the maximum extent permitted by applicable law.

CALIFORNIA PROPOSITION 65 WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING THIS PRODUCT IS NOT D.O.T. APPROVED

This product is not D.O.T. (Department of Transportation) approved and should not be used for automotive applications.
